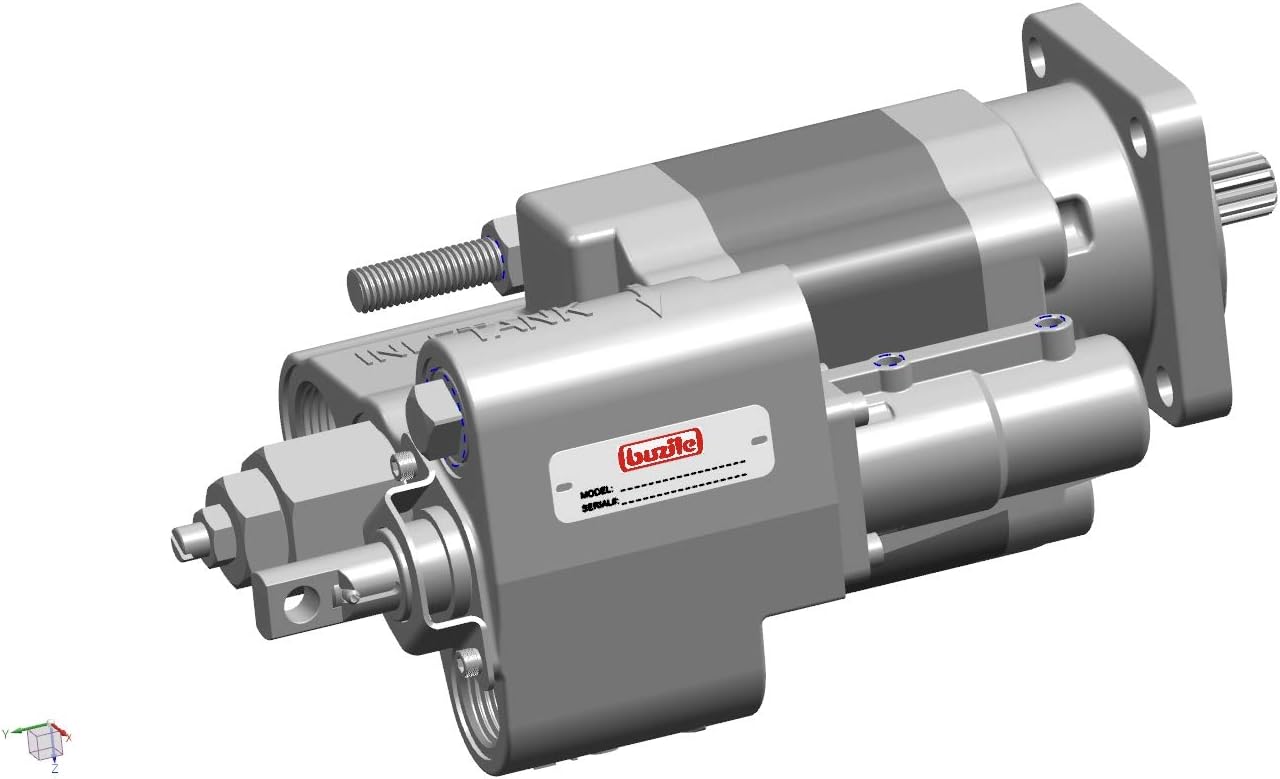

Dump Pump BC102-25LAS Replacement for C102D-2.5-1-AS T102AX-25-A-25 E2XA27-2BPRL DMD-25-Z-L-AS-25 WAP102-25LAS MHC-102-C-25-L-AS PP-102-LAS-25 TKD64025AS VPC-102-25-Z-LAS-25 3149325227

BC102-25LAS Gear Width: 2.5" Flow at 1800 RPM: 46 GPM Rotation: CCW (Counter Clockwise) Relief Valve Setting: 2300 PSI Max Pressure: 2500 PSI Max Speeds: 2400 RPM Flow rate in cubic inches per revolution: 6.38 Porting: 1 1/4" NPT Inlet, 1" NPT Outlet Mounting: SAE 4 BOLT B Input Shaft: 7/8"-13 Tooth Spline Shaft Air shiftDescription features: 1. Pump and cylinder protected in the “Raise” and “Neutral” position of the spool 2. Air shaft cylinder available 3. Direct mount SAE “B” 4 bolt 4. Built-in direct acting relief valve set at 2300 PSI at the factory 5. All pumps and relief valves are 100% factory tested 6. High strength alloy steel gear and shaft set 7. Neutral lock-out safety cap for use with pull-out cable 8. 2 line for intermittent duty or 3 line for continuous duty systems 9. 2 extra long studs for easy installation of pump support bracket on direct mountBuzile Dump Body Pump BC102-25LAS Crossovers and Interchanges: C102D-2.5-1-AS or C102AX-25-A-25 (Parker/Commercial) T102AX-25-A-25/C102AX-25-A-25 (Tyrone/Chelsea) E2XA27-2BPRL or E3XA27-2BPRL (Muncie) DMD-25-Z-L-AS-25 (Permco) VPC-102-25-Z-L-AS-25 (VantagePower) WAP102-25LAS (World American) C1010DMCCWAS (Buyers) MHC-102-C-25-L-AS or MH102C-25AS (Metaris) PP-102-LAS-25 (Bezares) TKD64025AS (Truckraft ) C102AS, S-C678 or C102AST, S-16443 (New Star) VPC-102-25-Z-LAS-25 (Popular) WF-C102-25-L-A-2 or WF-C102-25-L-A-3 (FluiDyne) C102-2.5-LH-A-2 or C102-2.5-LH-A-3 (PHP) 3149325227 or 3149329202 + 3149414017 Air shift (10 Digit#)

• High Performance Specifications: Features a 2.5 inch gear width delivering 46 GPM flow at 1800 RPM with counter-clockwise rotation, maximum pressure rating of 2500 PSI, and operational speeds up to 2400 RPM for reliable dump body hydraulic operations
• Universal Compatibility: Direct replacement for multiple OEM part numbers including C102D-2.5-1-AS, T102AX-25-A-25, E2XA27-2BPRL, DMD-25-Z-L-AS-25, and many other crossover models, ensuring seamless integration with existing dump truck hydraulic systems
• Durable Construction Design: Built with high strength alloy steel gear and shaft set, SAE 4 bolt B direct mount configuration, and 7/8 inch 13 tooth spline input shaft for maximum durability and long-lasting performance in demanding applications
• Advanced Safety Features: Equipped with factory-set built-in direct acting relief valve at 2300 PSI, neutral lock-out safety cap compatible with pull-out cable, and pump protection in both raise and neutral spool positions for enhanced operational safety
• Professional Grade Porting: Configured with 1 1/4 inch NPT inlet and 1 inch NPT outlet ports, air shift capability, and includes 2 extra long studs for simplified installation of pump support bracket on direct mount applications
