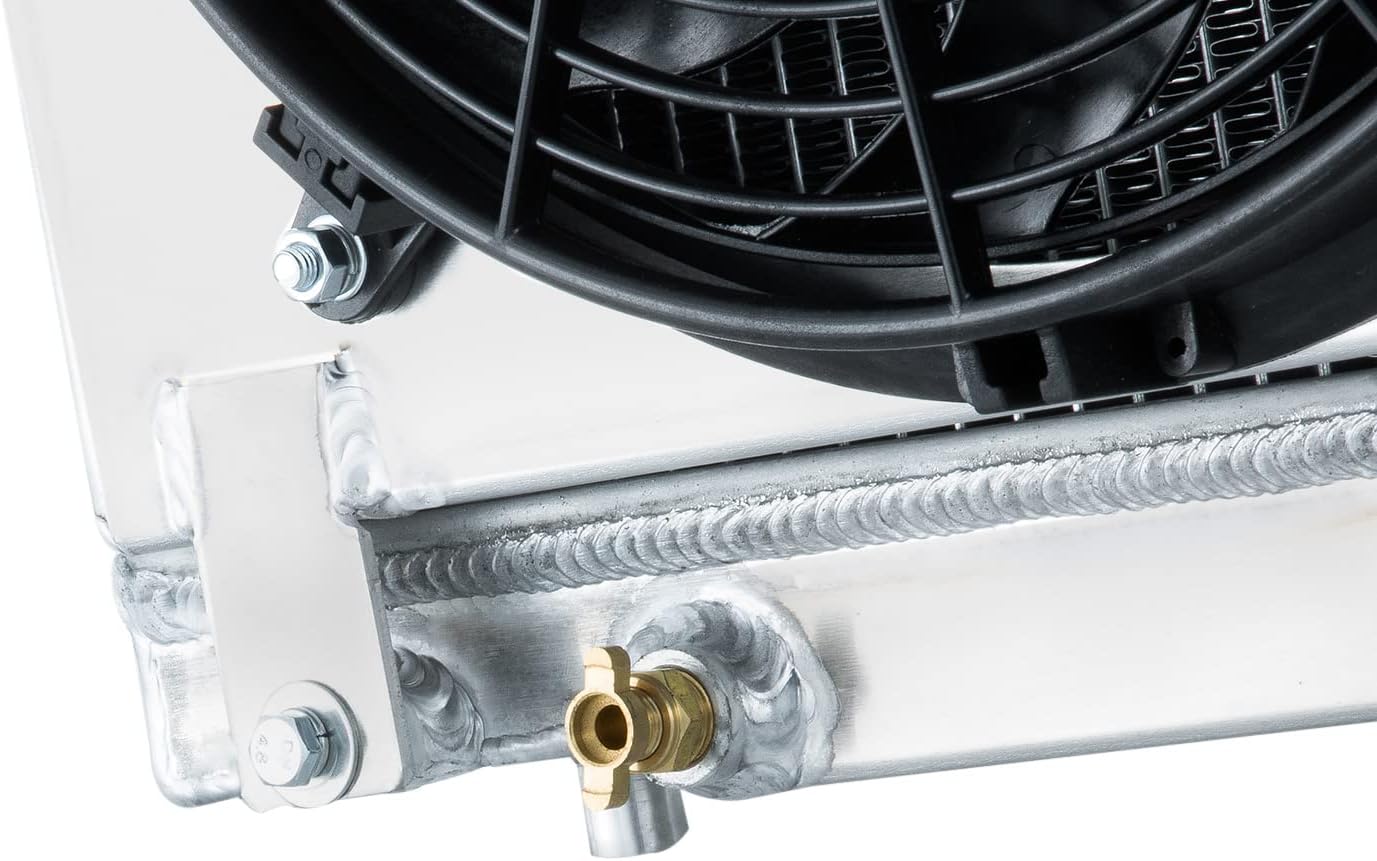

All Aluminum Radiator Compatible with Lexus IS200/IS300 2.0/3.0L 1G-FE 2JZ-GE Manual MT 1999-2005, 3 Row Core Radiators with 12inch Electric Fan Shroud Thermostat Realy Kit

This Radiator Compatible with: Replacement For Lexus Is200 / Is300 2.0 / 3.0 1999-2005 2000 2001 2002 2003 2004 MT Radiator Specs: High Performance Racing Spec. 3-Row of tubes Core Racing Design Core Material: Full Aluminum Tank Material: All Aluminum Transmission:manual only Flow Type: Downflow Radiator Cap: Included Mounting Type: Bolt-On Petcock Drain: OEM style brass petcock drain Radiator Cap: CNC machined filler neck and cap Fan Details: Volt :12v Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050 Thickness (in): 2.500 Number of Blades: 10 S-Type blade Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe included Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This set up will run Fans & pull air in through radiator The advantages of our radiator: This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications If your radiator is leaking or not working after installation, pls contact us and send us a clear pics of leaking details, we will resend or refund for you according to your choice Contact us: If you have any question or need any help from us, please feel free to contact us, we are willing to solve all problems for you Welcome to our store, Have a nice shopping!!!

• 3 Row Core Downflow Radiators Shroud Fan Relay Kit Replacement for Lexus Is200 / Is300 2.0L / 3.0L 1G-FE 2JZ-GE Radiador 1999-2005 2000 2001 2002 2003 2004 MT; Transmission: Manual only
• Radiator Core Size(inch): 14 3/4'' x 27 7/8'' x 1.74'' Thickness / Overall Size(inch): 20 1/2'' x 29 1/8'' / Inlet(inch): 1 7/20'' / Outlet(inch): 1 7/20'' / Rows: 3
• The KUUHLERSAT radiator is made of full TAA5052 aluminum construction, 100% Welded By TIG
• 100% aluminum construction provides greater heat and pressure tolerance, better heat dissipation and improved structural rigidity
• Superior fin waves provide a higher heat transfer, thin-tube construction assures maximum cooling efficiency
